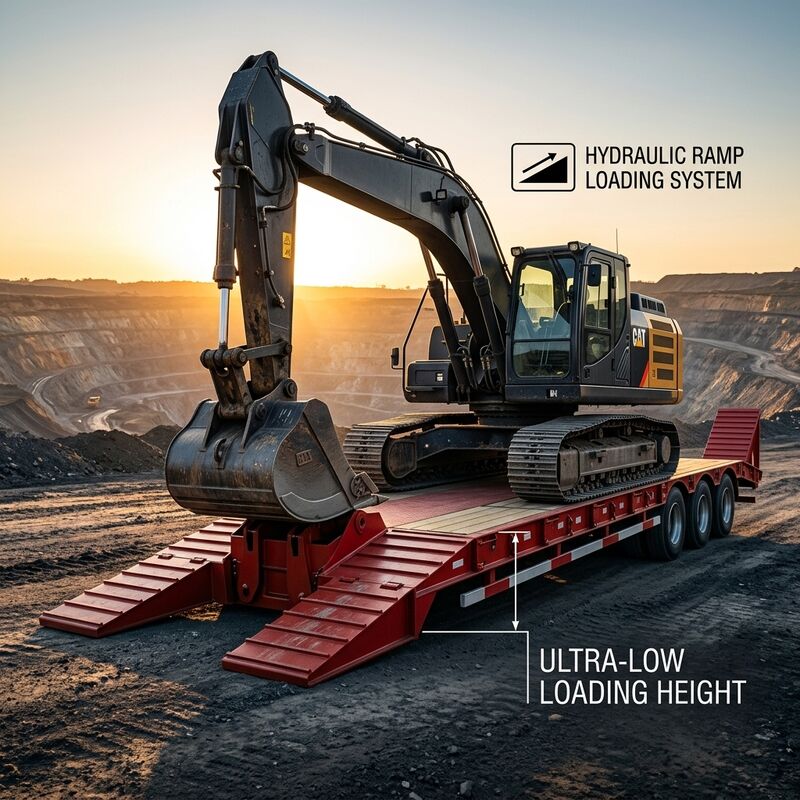

Removable Gooseneck Semi Trailer
Product Description:
The detachable gooseneck trailer can use the lifting cylinder installed on the vehicle to support the front part of the semi trailer body on the ground. After the tractor is separated from the saddle of the semi trailer, the tractor is driven away from the semi trailer. When the tractor leaves, the front part of the semi trailer can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a semi trailer ladder, thereby solving the problem of the large rear part of the detachable gooseneck trailer.
Parameter:
|
Dimension |
About 15690*3200*1800mm |
|
Cargo platform size: |
6700*3200 mm |
|
No. of axle: |
3 |
|
Kingpin: |
3.5inch, 90# bolt in type |
|
Payload: |
70 Tons |
|
Tire size: |
12R22.5 (12 sets) |
|
Rim size: |
9..00-22.5 (12 sets) |
|
Axle: |
16 Tons, 3 Axle |
|
Suspension: |
Spring suspension |
|
Brake system: |
WABCO brand Re-6 emergency relay valve |
|
Electric system: |
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
|
Painting: |
Two coat of anti-corrosion prime; one coat of finish painting |
|
Accessory: |
With diesel engine power pack and removable hydraulic gooseneck |
|
Loading/Shipping idea: |
Load by RoRo or bulk ship |
