Product Details
Place of Origin: CHINA
Brand Name: SINOTERCEL
Payment & Shipping Terms
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: waxing
Supply Ability: 1000units/month
Product Description:

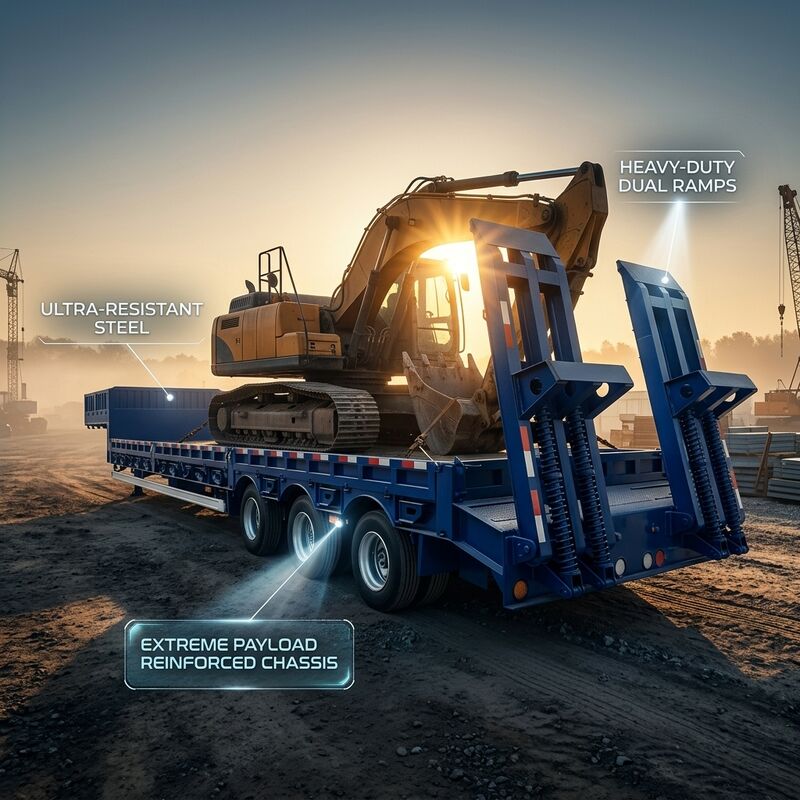

Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machine
Our company's Low bed semi trailer which exported to so many countries, such as Asia countries, Africa countries, South America countries and so on.
Which is popular used in Mining industry, Construction business and so on.
Parameter:
|
Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines |
|
|
Model |
3 Axles 60Tons |
|
Axle |
FUWA brand, 16ton, 3 Sets |
|
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
|
Dimension of Flat |
13000*3000*6mm |
|
Material |
Carbon steel or Mn steel |
|
Gross vehicle weight |
75000kgs |
|
King pin |
#90 |
|
Support leg |
JOST Standard 28T |
|
Suspension |
Normal suspension |
|
Thickness leaf spring |
10/10/10 |
|
Tire/Rim |
1200R20, 13pcs, 8.5, 12 pcs |
|
Brake Chamber |
Standard 6 pcs |
|
Spare wheel carrier |
2 pcs |
|
Tool box |
1 pcs |
|
Electrical System |
Chinese standard 24C lighting system |
|
Side Maker Lamp |
LED lamp |
|
Painting |
Polyurethane Paint |
|
Overall dimension |
16000×2500×3880(mm) |
|
Color |
White, red, green, golden and so on. |
