Product Details
Place of Origin: CHINA
Brand Name: SINOTERCEL
Payment & Shipping Terms
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: waxing
Supply Ability: 1000units/month
Product Description:

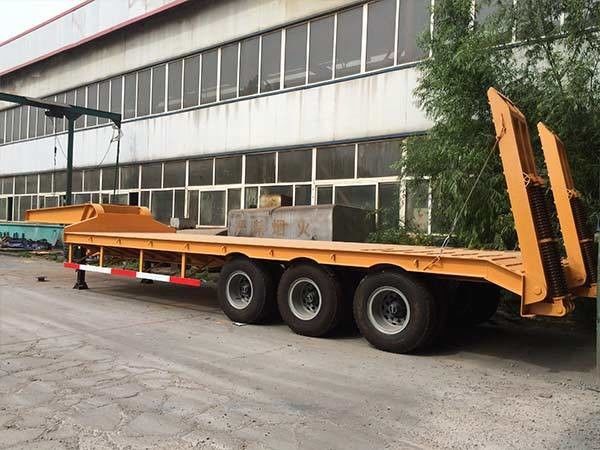

Product features of low flat transport semi-trailer:
The load-carrying surface of the cargo platform of the frame is low, which is suitable for the transportation of various construction machinery and large-scale equipment. It is widely used, efficient and fast.
Reasonable structure: The whole vehicle is optimized by advanced computer-aided design system, and the frame adopts a frame structure combining penetrating beams and I-shaped beams, which has high strength, good rigidity and toughness.
Advanced technology: The longitudinal beam is made of low-alloy steel specially used for automobiles and welded by a fully automatic buried welding machine. The parts of the frame are all shot blasted to enhance the paint adhesion and weather resistance, making the vehicle beautiful and practical.
Suspension system: The tandem independent balance suspension system is adopted to ensure the load balance of each axle.
Parameter:
|
Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines |
|
|
Model |
3 Axles 60Tons |
|
Axle |
FUWA brand, 16ton, 3 Sets |
|
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
|
Dimension of Flat |
13000*3000*6mm |
|
Material |
Carbon steel or Mn steel |
|
Gross vehicle weight |
75000kgs |
|
King pin |
#90 |
|
Support leg |
JOST Standard 28T |
|
Suspension |
Normal suspension |
|
Thickness leaf spring |
10/10/10 |
|
Tire/Rim |
1200R20, 13pcs, 8.5, 12 pcs |
|
Brake Chamber |
Standard 6 pcs |
|
Spare wheel carrier |
2 pcs |
|
Tool box |
1 pcs |
|
Electrical System |
Chinese standard 24C lighting system |
|
Side Maker Lamp |
LED lamp |
|
Painting |
Polyurethane Paint |
|
Overall dimension |
16000×2500×3880(mm) |
|
Color |
White, red, green, golden and so on. |
