Product Details
Place of Origin: CHINA
Brand Name: SINOTERCEL
Payment & Shipping Terms
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: waxing
Supply Ability: 1000units/month
Product Description:

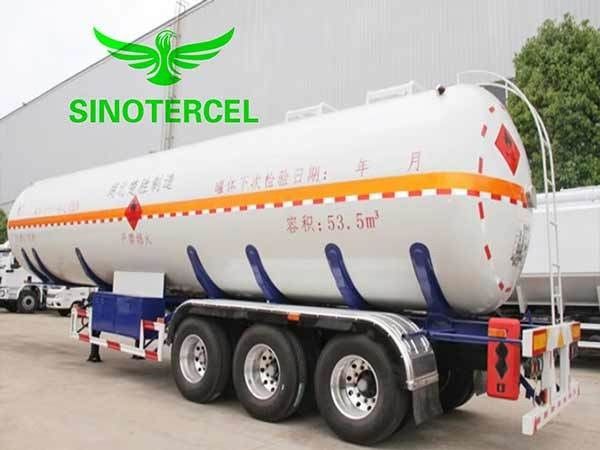

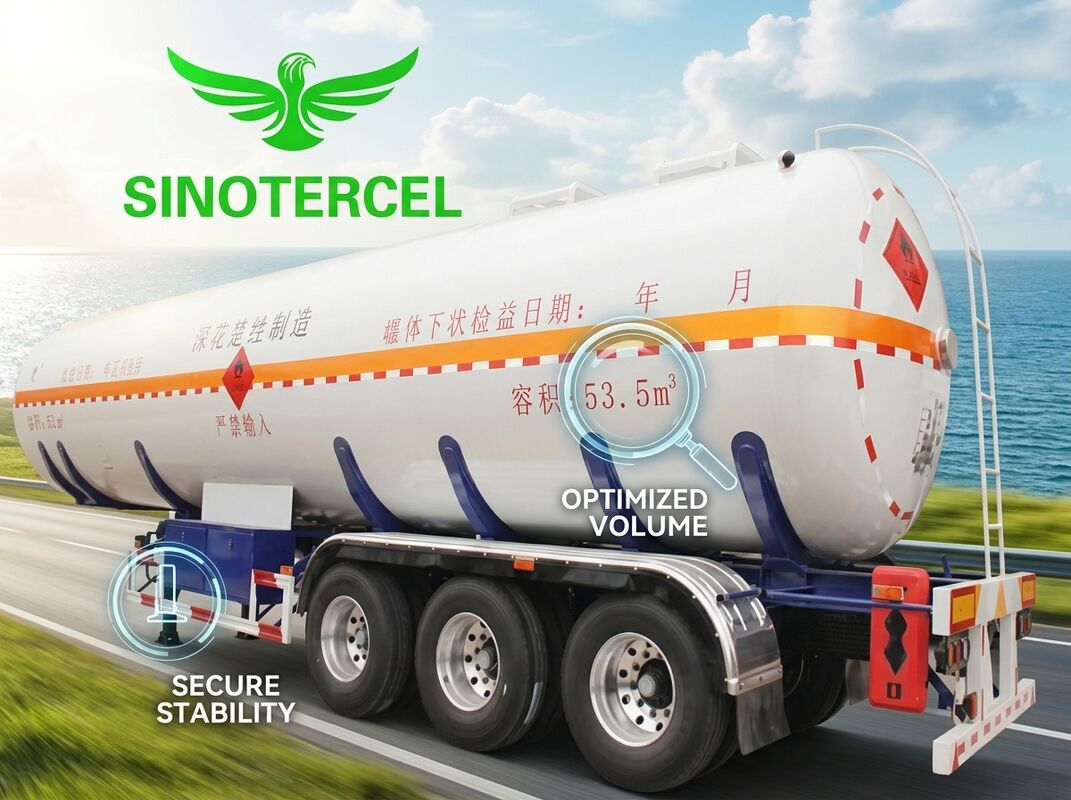

Gas transport semi-trailer is a special vehicle for transporting liquefied gas. Its main features are: wide body, can load a lot of liquefied gas. As a result, it can transport large amounts of liquefied gas in a short time. This is a great help for transporting liquefied gas.
It has great advantages in transporting liquefied gases. Therefore, it is widely used.
Parameter:
|
Gas transport semi-trailer |
|
|
Model |
3 Axles 55000Liters |
|
Axle |
FUWA brand, 16ton, 3 Sets |
|
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
|
Tank Body Thickness |
4mm, 5mm, 6mm optional |
|
Material |
Carbon steel or Mn steel |
|
Gross vehicle weight |
65000kgs |
|
King pin |
#90 |
|
Support leg |
JOST Standard 28T |
|
Suspension |
Normal suspension |
|
Thickness leaf spring |
-/7/7/7,-/8/8/8,-/4/4/4 |
|
Tire/Rim |
1200R20, 13pcs, 8.5, 12 pcs |
|
Brake Chamber |
Standard 6 pcs |
|
Spare wheel carrier |
2 pcs |
|
Tool box |
1 pcs |
|
Electrical System |
Chinese standard 24C lighting system |
|
Side Maker Lamp |
LED lamp |
|
Painting |
Polyurethane Paint |
|
Overall dimension |
13000×2500×4000(mm) |
|
Color |
White, red, green, golden and so on. |
|
Wheel base front/rear (mm) |
- / 1860/1860/1860 |
|
Wheelbase (mm) |
7270+1310+1310 |
|
Overall dimension (mm) Length * width * height |
13000,12000,11330,11450,10700,10770×2550×4000 |
