Product Details
Place of Origin: CHINA
Brand Name: SINOTERCEL
Payment & Shipping Terms
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: waxing
Supply Ability: 1000units/month
Product Description:

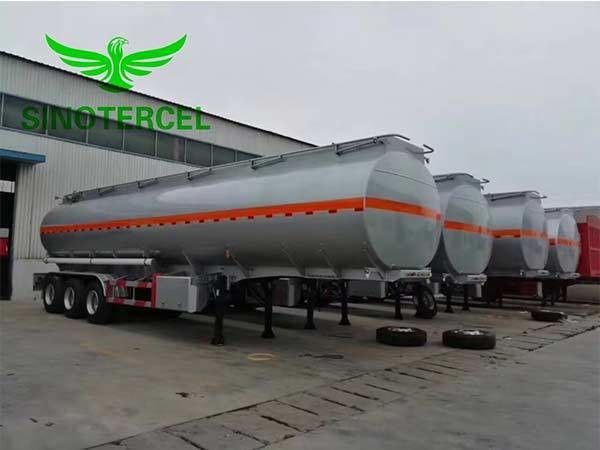

The oil tank transport semi-trailer produced by our company has the characteristics of good sealing performance, safety and stability. After welding, the tank body adopts the shot peening pretreatment process to realize rust removal and rust prevention. The paint adopts the advanced baking technology, which makes the appearance beautiful and durable. The warehouse can be divided into chambers, the lower end of the middle partition has a through hole, and the middle of each warehouse is welded with a divided bin to strengthen the wave partition, in order to reduce the impact of the oil in the tank when the car is driving and improve the stiffness of the tank, to ensure the safety and stability of the tank car
Parameter:
|
SINOTRUK Large Capacity Diesel Semi Trailer Tanker truck Tri - Axle 50 - 80 Tons |
|
|
Model |
3 Axles 50000Liters |
|
Axle |
FUWA brand, 13ton, 3 Sets |
|
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
|
Tank Body Thickness |
4mm, 5mm, 6mm optional |
|
Material |
Carbon steel or Mn steel |
|
Gross vehicle weight |
65000kgs |
|
King pin |
#90 |
|
Support leg |
JOST Standard 28T |
|
Suspension |
Normal suspension |
|
Thickness leaf spring |
10/10/10 |
|
Tire/Rim |
1200R20, 13pcs, 8.5, 12 pcs |
|
Brake Chamber |
Standard 6 pcs |
|
Spare wheel carrier |
2 pcs |
|
Tool box |
1 pcs |
|
Electrical System |
Chinese standard 24C lighting system |
|
Side Maker Lamp |
LED lamp |
|
Painting |
Polyurethane Paint |
|
Overall dimension |
14100×2500×3780(mm) |
|
Color |
White, red, green, golden and so on. |
|
Wheelbase (mm) |
5330+1310+1310 |
|
Wheel base front/rear (mm) |
- / 1840/1840/1840 |
