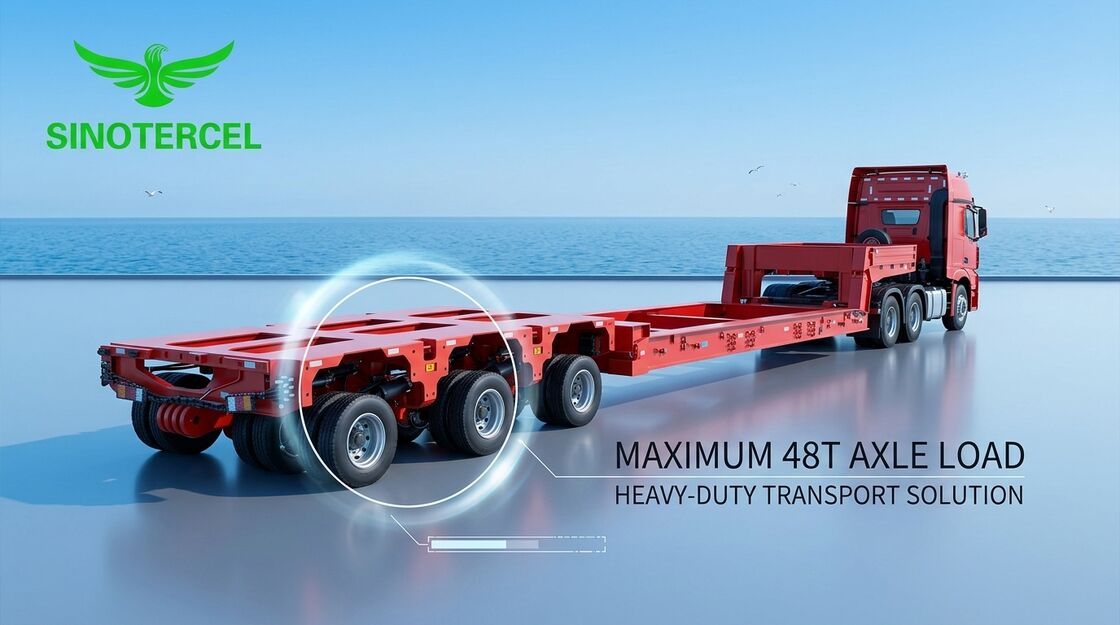

Hydraulic Modular Semi Trailer
Product Description:
Hydraulic axis transport semi trailer is mainly composed of flat grid box frame, hydraulic suspension, wheel shaft, steering rod system, hydraulic system, air brake system, power unit and other components. It has the advantages of adjustable height of cargo platform, uniform load of wheel shaft, small turning radius, convenient reversing and so on. When driving on the up and down ramps and slopes, the car body can be adjusted to maintain the balance position and ensure the stability of goods. Hydraulic combined trailer adopts modular design to adapt to different size and weight of the workpiece, with longitudinal splicing, transverse splicing function.
Parameter:
|
Hydraulic axis transport semi trailer |
|
|
Model |
3 Axles 60Tons |
|
Axle |
FUWA brand, 16ton, 2 Sets |
|
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
|
Dimension of Flat |
13000*3000*6mm |
|
Material |
Carbon steel or Mn steel |
|
Gross vehicle weight |
75000kgs |
|
King pin |
#90 |
|
Support leg |
JOST Standard 28T |
|
Suspension |
Normal suspension |
|
Thickness leaf spring |
10/10/10 |
|
Tire/Rim |
1200R20, 13pcs, 8.5, 12 pcs |
|
Brake Chamber |
Standard 6 pcs |
|
Spare wheel carrier |
2 pcs |
|
Tool box |
1 pcs |
|
Electrical System |
Chinese standard 24C lighting system |
|
Side Maker Lamp |
LED lamp |
|
Painting |
Polyurethane Paint |
|
Overall dimension |
16000×2500×3880(mm) |
|
Color |
White, red, green, golden and so on. |
|
Wheelbase(mm) |
8100+1310+1310 |
