Heavy-Duty Low Bed Semi Trailer 60-100t Capacity Customizable

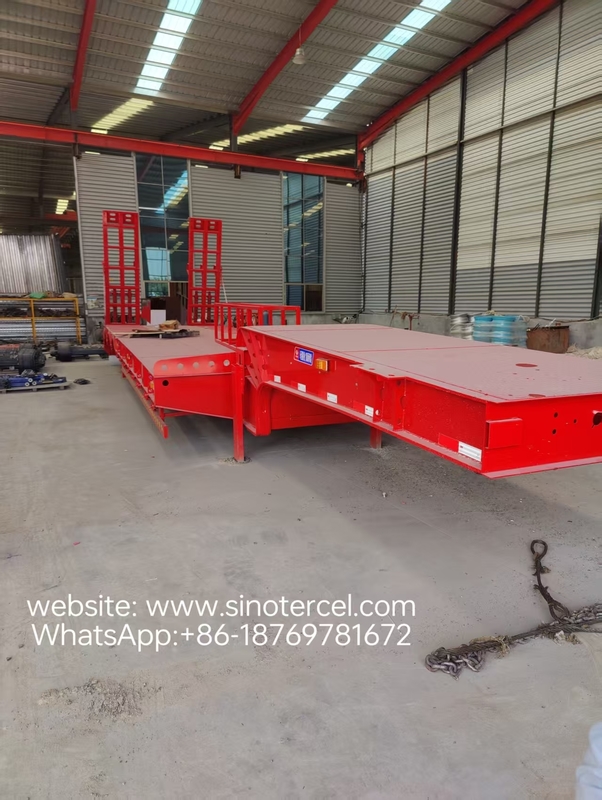

 Heavy - Duty Low Bed Semi Trailer

1. General Introduction
Our  Heavy - Duty Low Bed Semi Trailer is a high - performance transportation vehicle designed to meet the demanding needs of heavy - load transportation. It is engineered with precision and built to last, ensuring reliable service in various industrial applications.

2. Key Features

- High Load - Bearing Capacity: With a load - bearing capacity of 60 tons (ranging from 60t - 100t in common models), it can handle large - scale and heavy - weight cargoes such as construction machinery (like excavators, bulldozers), large - sized industrial equipment, and heavy - duty steel products.

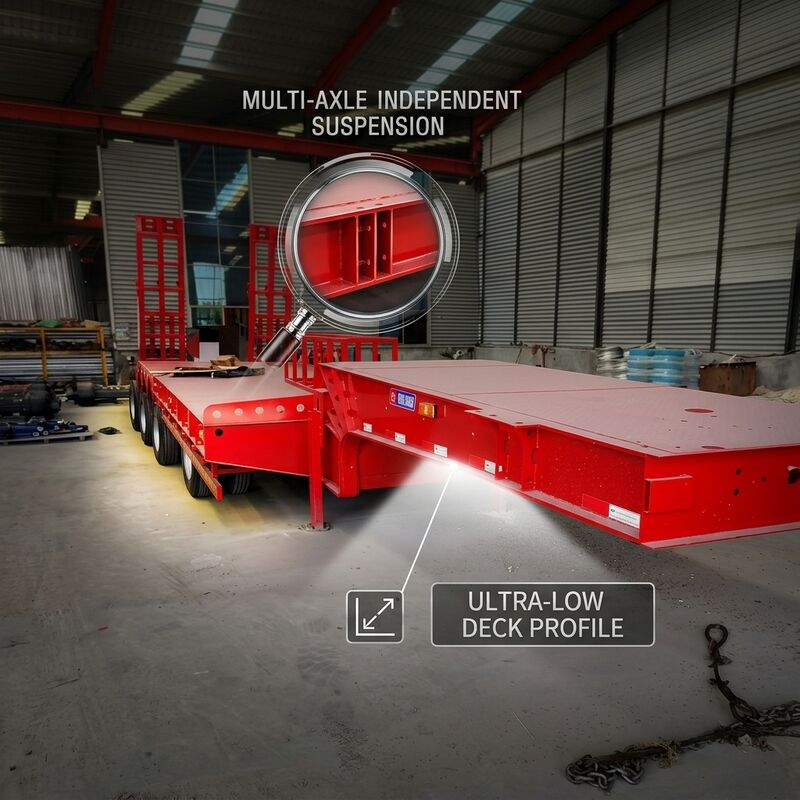

- Low Bed Design: The low - bed structure significantly reduces the center of gravity of the transported goods. This not only improves the stability during transportation but also enables the safe carriage of over - height cargo, making it easier to pass under bridges, power lines and other overhead obstacles.
- Robust Frame Structure: The semi - trailer features a strong and durable frame. The main beam and side beams are made of high - strength steel, such as Q345B. The main beam height is usually between 450mm - 520mm, with the upper plate thickness of 14mm - 25mm, the middle plate of 8mm - 12mm, and the lower plate of 16mm - 25mm. The side beam is made of 16mm - 25mm channel steel (material is Q235 steel). This construction ensures high stiffness and strength, effectively withstanding the heavy loads and vibrations during long - distance transportation.
- Advanced Suspension System: It is equipped with either a mechanical suspension (German type or American type) or an air suspension (China brand or BPW brand). The mechanical suspension provides reliable performance and durability, while the air suspension offers better shock - absorption and load - balancing capabilities, ensuring a smooth ride even on rough roads and reducing the impact on the cargo. The spring leaf specifications are 90 (W) mm * 13 (thickness) mm * 10 layer or 100mm * 12mm * 12, providing stable support for the vehicle.
- High - Quality Axles: Axles with a capacity of 13t / 16t from well - known brands like Fuwa, BPW, or Huajing are used. These axles are designed to handle heavy loads and provide reliable performance, ensuring the safety and stability of the semi - trailer during operation.
- Reliable Braking System: The braking system is equipped with high - quality components. For example, it uses a WABCO RE6 relay valve, T30 / 30 + T30 spring brake chamber (TKL brand), and two pieces of 45L air tanks. The ABS (Anti - lock Braking System) is optional, which can effectively prevent wheel lock - up during braking, improve braking stability, and enhance driving safety.
- Convenient Loading and Unloading: The semi - trailer can be equipped with a manual or hydraulic ladder for easy loading and unloading of equipment. The heavy - duty type ramp is made of manganese plate butt - welding, which can safely support heavy - duty machinery. Some models also have extra legs on the rear of the trailer, ensuring more safety when loading heavy - duty machinery.

3. Dimensions and Specifications

- Overall Dimensions: Usually, the length ranges from 13000mm - 16000mm, the width is 3000mm - 3500mm, and the height is about 1650mm. However, these dimensions can be customized according to specific customer requirements.
- Tare Weight: Approximately 8.5 - 13t, which may vary depending on the configuration and specifications.
- Wheel and Tire Configuration: The rim sizes available include 6.5 - 20 / 7.5 - 20 / 8.00 - 20 / 8.5 - 20, and the corresponding tire sizes are 8.25R20 / 10.00R20 / 11.00R20 / 12.00R20, providing different options to meet various load - bearing and road - condition requirements.

4. Custom Build Available
We understand that different customers have different transportation needs. Therefore, we offer custom - build services for this heavy - duty low - bed semi - trailer. Whether you need to adjust the load - bearing capacity, modify the dimensions, or add special features such as a specific type of loading device or a particular paint finish, our professional team will work closely with you to meet your requirements.

5. Application Scenarios
This semi - trailer is widely used in construction, mining, energy, and large - scale manufacturing industries. It is an ideal choice for transporting large - scale construction machinery, mining equipment, large - sized generators, transformers, and other heavy - load and over - sized items over long distances.

If you have any questions or need more information about our Heavy - Duty Low Bed Semi Trailer, please feel free to contact us. Our professional sales team is ready to provide you with comprehensive solutions and excellent after - sales service.
